2x5dBI DETACHABLE ANTENNAS
Wireless
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 300Mbps
Frequency Range 2.4-2.4835GHz
Transmit Power 23dBm(MAX)
Data Transfer Rates 802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Modes AP, Repeater,WDS, Multi-SSID(VLAN)
Wireless Security 64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering
Hardware
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Interface 1 * 10/100Mbps Auto MDI/MDIX RJ45 LAN port, Passive PoE Supported
LED Indicators PWR, Turbo, WPS, LAN
(Turbo LED Status: Blue for Normal Power, Red for High Power)

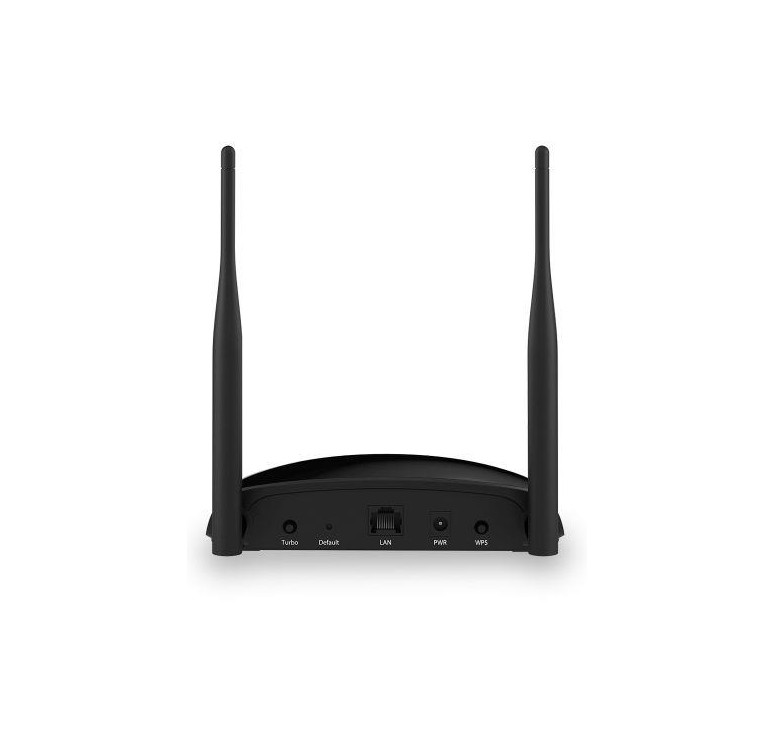

Buttons Turbo, Default, WPS
Antenna 2* 5dBi Detachable Antenna, SMA Connector
Power Supply DC 12V/1A (Output)
Software
LAN DHCP Client, DHCP Server
Others Time Settings,Firmware Upgrade, Backup & Restore
Others
Certification FCC, CE
Environment Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

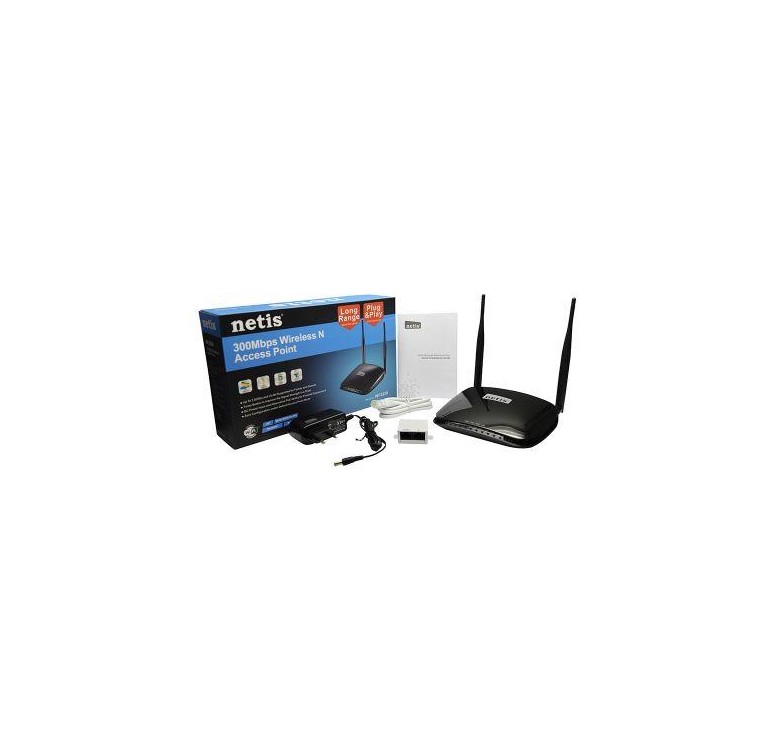

Package 1* WF2220
1* 12V/1A Power Adapter
1* PoE Power Injector
1* Ethernet Cable
1* Quick Installation Guide
