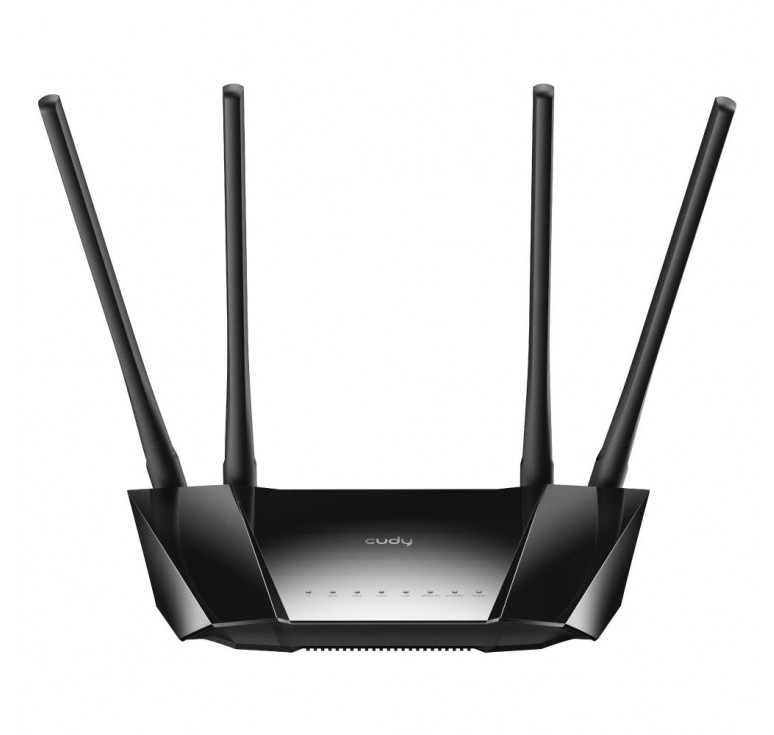

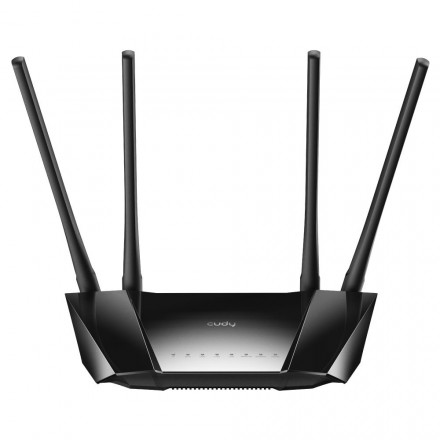

U Model 300Mbps Wireless N 4G LTE Router DRAM/FLASH 64MB DDR2/8M SPI Interface 3 x RJ45 10M/100M LAN Ethernet interfaces 1 x RJ45 10M/100M WAN Ethernet interface 1 x Reset 1 x Power Jack (12V/1A) 1 x SIM card slot (Nano) Antenna 2.4G (802.11N): 2T2R 4G: 2T2R Gain 5dBi Range 2.4-2.4835GHZ LED PWR, WIFI, 4G, LAN1-LAN3, WAN/LAN4 Transmit Power 11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: 300Mbps(MAX) Spread-spectrum technique DSSS Wireless Security WPA-PSK/WPA2-PSK, WPA/WPA2 Modulation type 11b: CCK, QPSK, BPSK 11g: OFDM 11n: QPSK, BPSK, 16-QAM, 64-QAM Media access protocol CAMA/CA with ACK 4G module RF Power Class 4 (33dBm±2dB) for GSM850 Class 4 (33dBm±2dB) for EGSM900 Class 1 (30dBm±2dB) for DCS1800 Class 1 (30dBm±2dB) for PCS1900 Class E2 (27dBm±3dB) for GSM850 8-PSK Class E2 (27dBm±3dB) for EGSM900 8-PSK Class E2 (26dBm±3dB) for DCS1800 8-PSK Class E2 (26dBm±3dB) for PCS1900 8-PSK Class 3 (24dBm+1/-3dB) for WCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands LTE Character Support 3GPP R8 non-CA cat 4 FDD Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO LTD-FDD: DL 150Mbps(MAX)/ UL 50Mbps(MAX) LTE Frequency Bands
EU Version LTE-FDD: B1/B3/B7/B8/B20/B28A LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM/EDGE: B3/B8 LTE Frequency Bands
US Version LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Software function Access mode Router mode AP mode Basic setting WAN setting LAN setting Mac clone DNS 2.4G WiFi setting 2.4G guest network setting 2.4G channel setting 2.4G signal strength setting 2.4G channel optimization Advance setting Black list setting Bonding list WIFI time off Children protection list Web blacklist Modify administrator password Panel light time off QoS Static bonding Forbidden connection Restore to default setting Restart router Firmware upgrade local/online More functional APP smart management Network speed testing L2TP client PPTP client UPNP DMZ Remote web management Port forwarding Virtual server Network fault diagnosis (web) Working temperature 0°C~40°C Storage temperature -20°C ~ 70°C Working humidity 5%~95% (typical) Power 12V/1A European Standard
EU Version LTE-FDD: B1/B3/B7/B8/B20/B28A LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM/EDGE: B3/B8 LTE Frequency Bands
US Version LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Software function Access mode Router mode AP mode Basic setting WAN setting LAN setting Mac clone DNS 2.4G WiFi setting 2.4G guest network setting 2.4G channel setting 2.4G signal strength setting 2.4G channel optimization Advance setting Black list setting Bonding list WIFI time off Children protection list Web blacklist Modify administrator password Panel light time off QoS Static bonding Forbidden connection Restore to default setting Restart router Firmware upgrade local/online More functional APP smart management Network speed testing L2TP client PPTP client UPNP DMZ Remote web management Port forwarding Virtual server Network fault diagnosis (web) Working temperature 0°C~40°C Storage temperature -20°C ~ 70°C Working humidity 5%~95% (typical) Power 12V/1A European Standard
