Product Name POE15 No. of channels 1(PoE IN) into 1(PoE OUT) Pass Through Data Rates 10/100/1000 Mbps half/full duplex Power over Ethernet input Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) Power over Ethernet Output
Pin Assignment and Polarity:1/2 (+), 3/6 (-)
Output Power: up to 25W

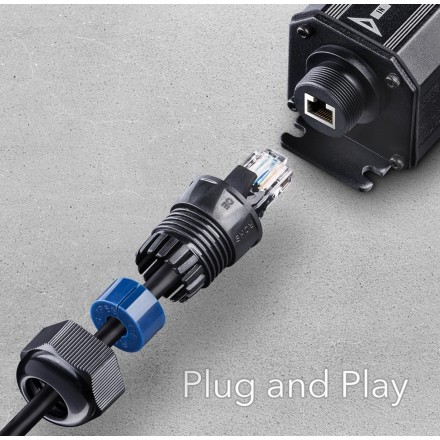

Indicators LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act Connectors Shielded RJ-45, EIA 568A and 568B Network cables Shielded category 5 (or higher) Dimensions 185mm x 45mm x 45mm Mounting Wall of shelf Environment Indoor or Outdoor Environmental ConditionsOperating Ambient Temperature: -25 to 55℃
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: -30 to 70℃
Storage Humidity: Maximum 95%, Non-condensing

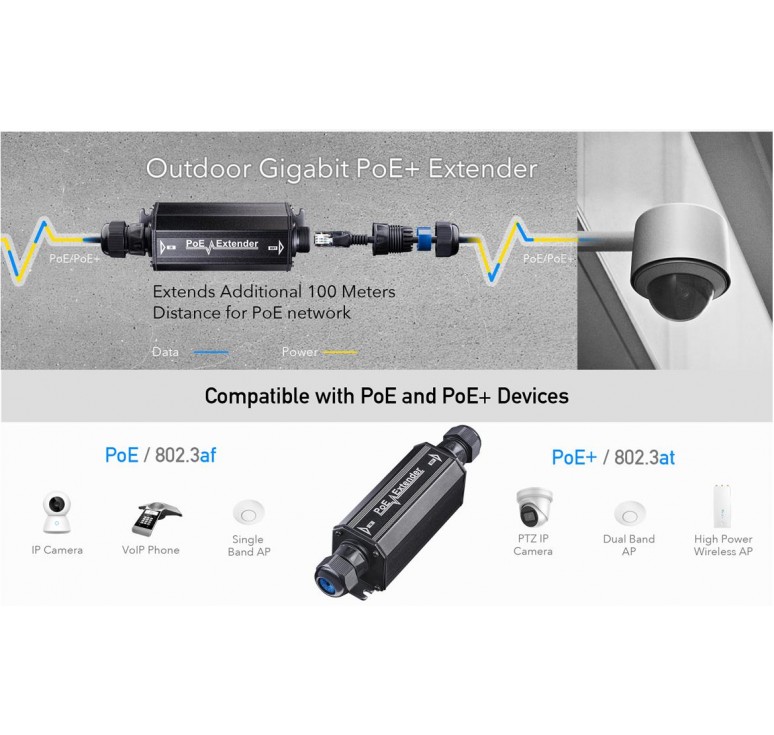

Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
