IModelPOE40No. of channels1(PoE IN) into 4(PoE OUT)Pass Through Data Rates10/100/1000 Mbps half/full duplexPower over Ethernet inputPin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
Output Power: up to 12W for 4 PSE or 30W for 2 PSE

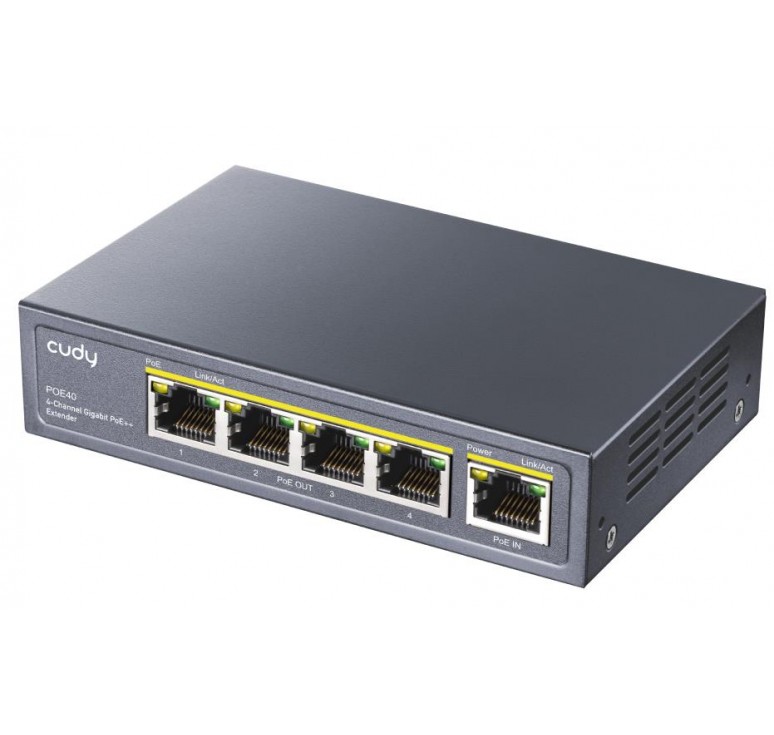

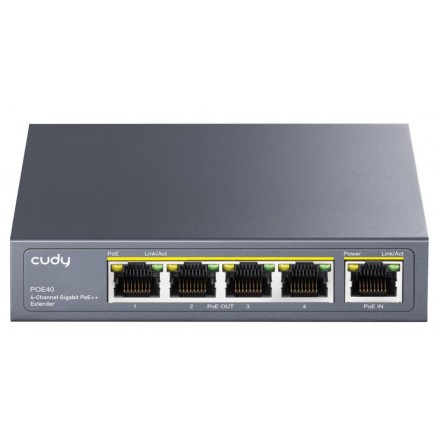

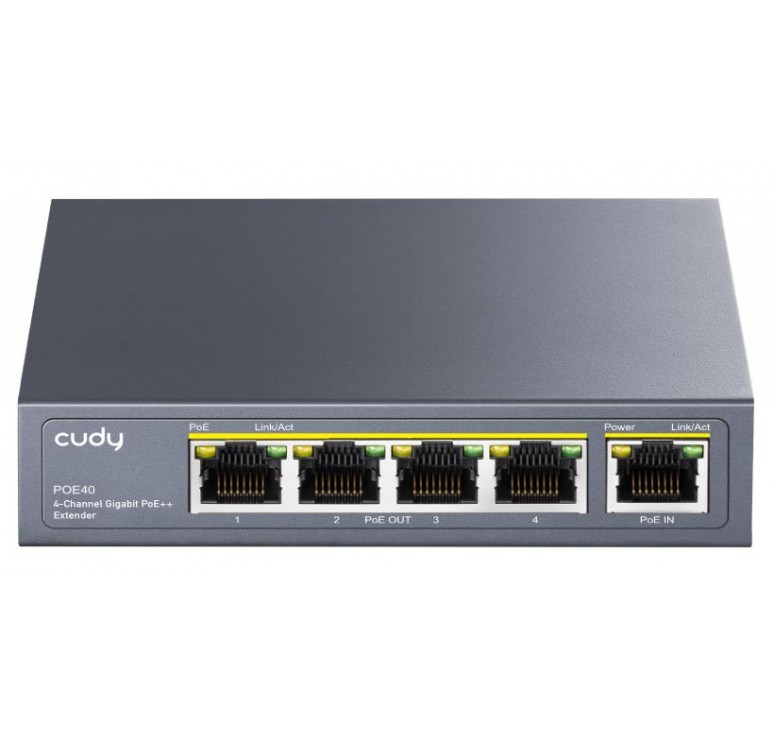

IndicatorsLED indicators are located on the RJ45 connectorPower indicator: PoE enabled
Powered success:Power
Network indicator: Link/Act
ConnectorsShielded RJ-45, EIA 568A and 568BNetwork cablesShielded category 5E (or higher)Dimensions119mm x 85mm x 28mmMountingWall of shelfEnvironmentIndoorEnvironmental ConditionsOperating Ambient Temperature: 0 to 45℃Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature:-40 to 70℃
Storage Humidity: Maximum 95%, Non-condensing
Regulatory ComplianceIEEE 802.3af (15.4W)IEEE 802.3at (30W)
IEEE802.3at 4Pairs(60W)
