-Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
-Easily wired network expansion
-Compact design for flexible arrangement
-Plug and play setup, no configuration required
-Green Ethernet technology saves power by up to 82%
Τεχνικά Χαρακτηριστικά:
Interfaces: 8x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
LED: Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
External Power Supply: 9V/0.6A
Dimensions (W X D X H): 127 x 60.3 x 22 mm
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates: 10/100/1000Mbps at Half Duplex, 20/200/2000Mbps at Full Duplex
Buffer Capacity: 64KB
Jumbo Frame: 9KB
Transfer Method: Store and Forward
Περιεχόμενα συσκευασίας

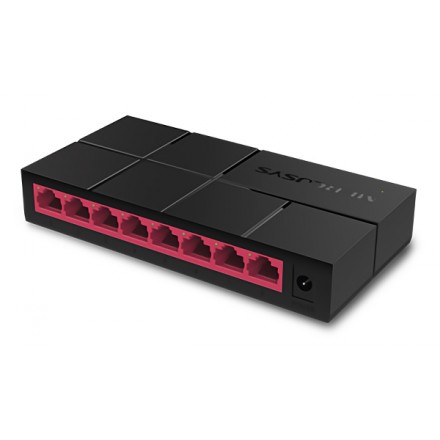

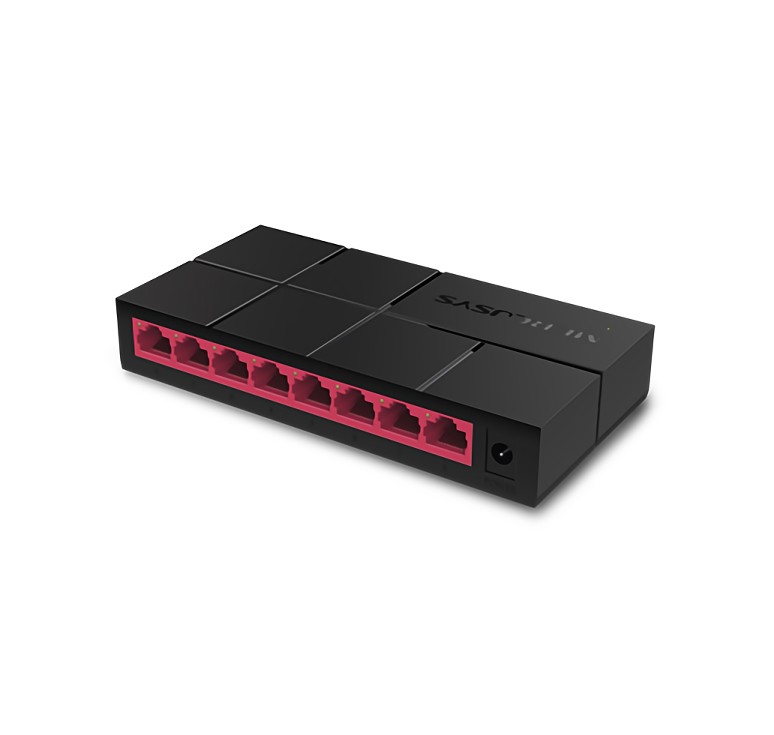

Desktop Switch MS108G
Τροφοδοτικό
Εγχειρίδιο χρήσης
