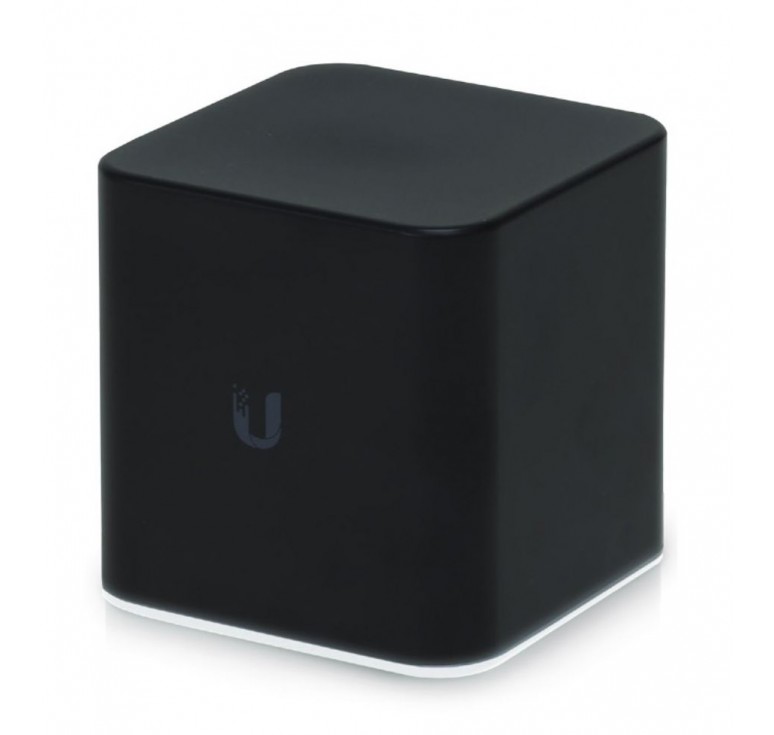

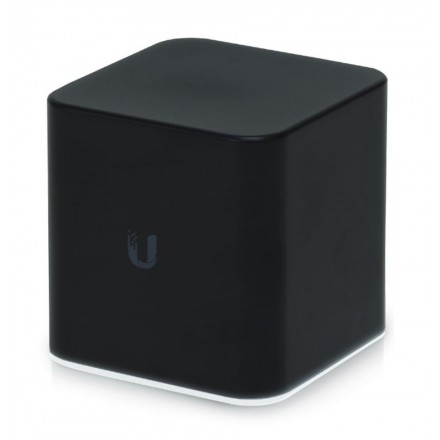

With a compact design and integrated 24V PoE passthrough, the airCube™ is a home Wi-Fi access point designed to interoperate with airMAX® CPEs and is available in two models.
- 4x 10/100 Fast Ethernet Ports
- 24V PoE Passthrough for airMAX CPE
- 802.11n, 2x2 MIMO Technology
- Up to 300 Mbps in the 2.4 GHz Radio Band
Τεχνικά Χαρακτηριστικά:
Power Supply: 5V
Power Method: PoE 24V In on LAN Port 1 or 2A Micro USB Adapter (Not Included)
Supported Power Voltage: 4.95-5.05V
Max. Power Consumption: 5W
PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface: Wi-Fi / Ethernet
Networking Interface: (4) 10/100 Fast Ethernet Ports
LED: Status
Max. TX Power: 22 dBm
Antenna Gain: 4 dBi
Max. Speeds: 300 Mbps
ESD/EMP Protection: ±24 kV RJ-45 Interface
Operating Temperature: -10 to 50° C
Operating Humidity: 5 to 95% Noncondensing
Dimensions: 87.80 x 89.50 x 89.25 mm
Weight: 215 g
